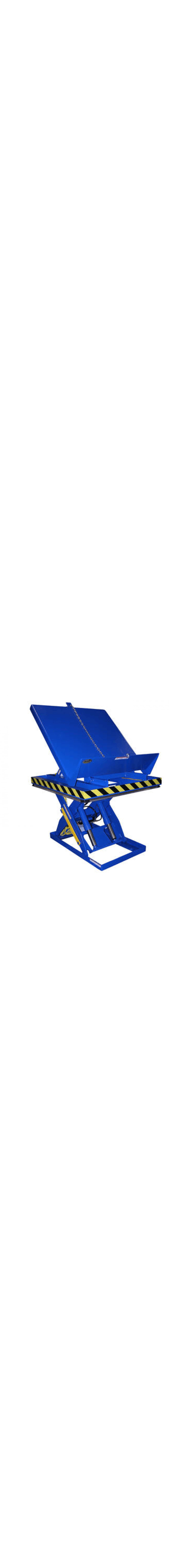

Lift & Tilt Scissor Tables
Lift & Tilt Scissor Tables. Listed models: EHLTT-3648-1-47, EHLTT-4848-1-47, EHLTT-3648-2-47, EHLTT-4848-2-47 and additional configurations; EHLTT-3648-1-47 Platform size: 36"x48".
Quote Only
Industrial Access Equipment
Zero-Low Lift & Tilt Tables
Zero-Low Lift & Tilt Tables. Listed models: ZLTTC-5048E, ZLTTD-5048E, ZLTTE-5048E, ZLTTD-5072E and additional configurations; ZLTTC-5048E Capacity (lb.): 1,000.
Lift Tables & Work Positioners Quote-based pricing
- Lifts load from ground level to desired height and then tilts the load for easy handling. (tilt up to 90° available at reduced capacity, ask your regional sales manager for more details).
- The Zero-Low Lift & Tilt Table puts work within easy reach of the worker for increased productivity, safety, and morale.
- Virtually eliminates bending, reaching, stretching and lifting, reducing worker fatigue and the risk of back injuries.
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Lift Tables & Work Positioners
Capacity
Request capacity guidance
Category
Material Handling Equipment
Key Feature
Lifts load from ground level to desired height and then tilts the load for easy handling. (tilt up to 90° available at reduced capacity, ask your regional sales manager for more details).
Product description
Zero-Low Lift & Tilt Tables is offered in the listed configurations ZLTTC-5048E, ZLTTD-5048E, ZLTTE-5048E, ZLTTD-5072E, ZLTTE-5072E, ZLTTE-6060E, with further models in the technical table. Compare each row separately; dimensions and capacities belong to the model identified in that row.
lift Table tilts up to 45 degrees for load handling ease Increased worker productivity and morale Reduces fatigue and increases worker safety Double Acting Cylinder Package All standard scissor lift tables have hydraulic lift up and gravity lowering.
If lowering speed is required, then order optional Double Acting Power System Lift Table Options:
For Zero-Low Lift & Tilt Tables, the catalog lists Listed models: ZLTTC-5048E, ZLTTD-5048E, ZLTTE-5048E, ZLTTD-5072E and additional configurations; ZLTTC-5048E Capacity (lb.): 1,000; ZLTTC-5048E Platform size (in.): 50 x 48. Match these details to the configuration being quoted; options and model variants may differ.
Product features
- Lifts load from ground level to desired height and then tilts the load for easy handling. (tilt up to 90° available at reduced capacity, ask your regional sales manager for more details).
- The Zero-Low Lift & Tilt Table puts work within easy reach of the worker for increased productivity, safety, and morale.
- Virtually eliminates bending, reaching, stretching and lifting, reducing worker fatigue and the risk of back injuries.
Selection considerations
- Confirm load weight, center of gravity and load dimensions.
- Confirm required lifting range, travel route and equipment clearances.
- Confirm floor conditions, load support and equipment operating limits.
Material handling
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Lift Tables & Work Positioners |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Capacity (lb.) | Platform size (in.) | Lowered Height (in.) | Vertical Travel (in.) | Overall Size (in.)W x L | Lowered Height (in.) | Overall Height (in.) | Model Number |
| Electric Motor (Air Motor suffix -A) | |||||||
| 1,000 | 50 x 48 | 1/2 | 32 | 74 x 52 1/2 | 11 1/2 | 43 1/2 | ZLTTC-5048E |
| 2,000 | 50 x 48 | 1/2 | 32 | 74 x 52 1/2 | 11 1/2 | 43 1/2 | ZLTTD-5048E |
| 4,000 | 50 x 48 | 3/4 | 32 | 76 x 52 1/2 | 11 1/2 | 43 1/2 | ZLTTE-5048E |
| 2,000 | 50 x 72 | 1/2 | 46 | 74 x 76 1/2 | 14 | 60 | ZLTTD-5072E |
| 4,000 | 50 x 72 | 3/4 | 46 | 76 x 76 1/2 | 14 | 60 | ZLTTE-5072E |
| 4,000 | 60 x 60 | 3/4 | 40 | 86 x 64 1/2 | 12 1/2 | 52 1/2 | ZLTTE-6060E |
| 4,000 | 60 x 72 | 3/4 | 46 | 86 x 76 1/2 | 14 | 60 | ZLTTE-6072E |
| 6,000 | 50 x 48 | 3/4 | 30 | 78 x 52 1/2 | 14 | 44 | ZLTTG-5048E |
| 6,000 | 60 x 72 | 3/4 | 46 | 88 x 76 1/2 | 14 | 60 | ZLTTG-6072E |
| NOTES: This unit must be fastened to the floor before use. Rated capacity is up to 45° tilt. Capacity drops 50% on tilts greater than 45° and up to 75% at 90° tilt. | |||||||
