Safety Gates - A Series - Aluminum
Safety Gates - A Series - Aluminum. Easy to Install; Stainless Steel Spring.
Quote Only
Industrial Access Equipment
Self Closing Safety Gate
Self Closing Safety Gate. Listed models: AG1626ZC2, AG2440ZC2, AG1626ZC1, AG2440ZC1 and additional configurations; AG1626ZC2 ADJ Range: 16" to 26".
Self Closing Safety Gates Quote-based pricing

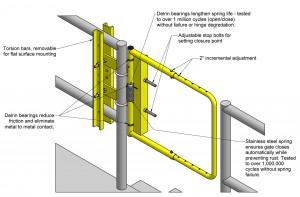

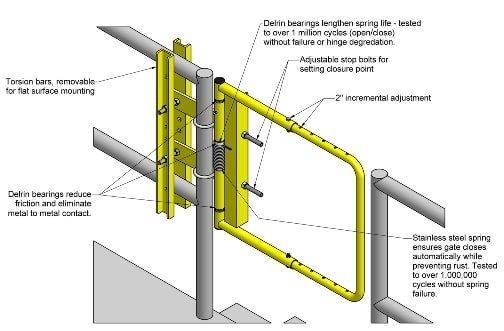

- Versatile, can be mounted to round rail, square rail, angular rail of up to 2", or a firm reinforced wall surface.
- Stainless steel spring closes the gate after each pass through.Tested to over 1 million cycles without spring failure
- New delrin bearings reduce friction, eliminate metal to metal contact, and increase spring life.
- Adjustable bolts position the gate and provide a stop without contacting the existing rail.
- Unique gate width is available in two adjustable size ranges: fits openings of 16" to 26" or 24" to 40". Gate width is adjustable in 2" increments. For wider openings, use two gates.
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Self Closing Safety Gates
Capacity
Request capacity guidance
Category
Facility Safety
Key Feature
Versatile, can be mounted to round rail, square rail, angular rail of up to 2", or a firm reinforced wall surface.
Product description
Self Closing Safety Gate is offered in the listed configurations AG1626ZC2, AG2440ZC2, AG1626ZC1, AG2440ZC1, AG1626S. Compare each row separately; dimensions and capacities belong to the model identified in that row.
They easily install to existing platforms and stair openings.
Adjustable - Easy to Install - Versatile - Promotes Safety The unique gate width is available in two adjustable size ranges: 16" to 26" or 24" to 40".
Gate width is adjustable in 2" increments.
For Self Closing Safety Gate, the catalog lists Listed models: AG1626ZC2, AG2440ZC2, AG1626ZC1, AG2440ZC1 and additional configurations; AG1626ZC2 ADJ Range: 16" to 26"; AG1626ZC2 Finish: yellow powder coat over zinc rich powder coat. Match these details to the configuration being quoted; options and model variants may differ.
Product features
- Versatile, can be mounted to round rail, square rail, angular rail of up to 2", or a firm reinforced wall surface.
- Stainless steel spring closes the gate after each pass through.Tested to over 1 million cycles without spring failure
- New delrin bearings reduce friction, eliminate metal to metal contact, and increase spring life.
- Adjustable bolts position the gate and provide a stop without contacting the existing rail.
- Unique gate width is available in two adjustable size ranges: fits openings of 16" to 26" or 24" to 40". Gate width is adjustable in 2" increments. For wider openings, use two gates.
- Chose from two outstanding corrosion resistant finish options: two part powder coat finish zinc primer with UV resistant polyester top coat - outperforms galvanizing 10 to 1 in salt spray tests or all stainless steel construction for the most extreme conditions.
Selection considerations
- Confirm the intended task and equipment interfaces.
- Confirm load, dimensions and available operating space.
- Confirm installation requirements and the required configuration.
Industrial operations
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Self Closing Safety Gates |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| MODEL NO. | ADJ Range | Finish | |
| AG1626ZC2 | 16" to 26" | yellow powder coat over zinc rich powder coat | |
| AG2440ZC2 | 24" to 40" | yellow powder coat over zinc rich powder coat | |
| AG1626ZC1 | 16" to 26" | gray powder coat over zinc rich powder coat | |
| AG2440ZC1 | 24" to 40" | gray powder coat over zinc rich powder coat | |
| AG1626S | 16" to 26" | stainless steel | |
| AG2440S | 24" to 40" | stainless steel |
