Maintenance Order Picking Man Lift
Maintenance Order Picking Man Lift. Listed models: OP-10, OP-11; OP-10 Platform Max: 9' 6".
Vertical Mast & Personnel Lifts Quote-based pricing
- One Person lift with 300 lbs. capacity
- Totally enclosed 26 x 28 platform with 42 guardrails, midrails and gate
- Welded compact base 32 x 63 allows lift to pass through doorways
- No outriggers required
- Rolls effortlessly on two locking swivel and two rigid 6 casters
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Vertical Mast & Personnel Lifts
Capacity
Request capacity guidance
Category
Man Lifts & Aerial Work Platforms
Key Feature
One Person lift with 300 lbs. capacity
Product description
Maintenance Order Picking Man Lift is offered in the listed configurations OP-10, OP-11. Compare each row separately; dimensions and capacities belong to the model identified in that row.
For Maintenance Order Picking Man Lift, the catalog lists Listed models: OP-10, OP-11; OP-10 Platform Max: 9' 6"; OP-10 Platform Min: 12". Match these details to the configuration being quoted; options and model variants may differ.
Product features
- One Person lift with 300 lbs. capacity
- Totally enclosed 26 x 28 platform with 42 guardrails, midrails and gate
- Welded compact base 32 x 63 allows lift to pass through doorways
- No outriggers required
- Rolls effortlessly on two locking swivel and two rigid 6 casters
- Both hands are required to operate controls for user safety
- 12V DC power source complete with battery and charger for raising and lowering (alternate power sources available)
- 80 to 100 raise and lower cycles between charges
- 2 models to choose from:
- Ground Entry (OP-10*) - raises to 9 6 and contains two 24 x 24 shelves on base (*Shelf that raises and lowers with platform not included)
- One Step Entry (OP-11) - raises to 10 6 and contains two 18 x 24 shelves on base and a 20 x 28 shelf that raises and lowers platform
- Standard finish is deep gray enamel paint
Selection considerations
- Confirm required working position and equipment reach.
- Confirm combined operator, tool and material load.
- Confirm floor or ground conditions, access width and overhead obstructions.
Access and lifting
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Vertical Mast & Personnel Lifts |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Model Number | Platform Max | Platform Min | Working Height | Platform Length | Platform Width | Weight Lbs. |
|---|---|---|---|---|---|---|
| OP-10 | 9' 6" | 12" | 15' | 26" | 28" | 710 |
| OP-11 | 10' 6" | 23" | 16' | 26" | 28" | 730 |
Need help choosing the right equipment?
Tell us your requirements and we’ll recommend the best-fit configuration and provide pricing.
Related Products
More options from the same category and similar equipment.

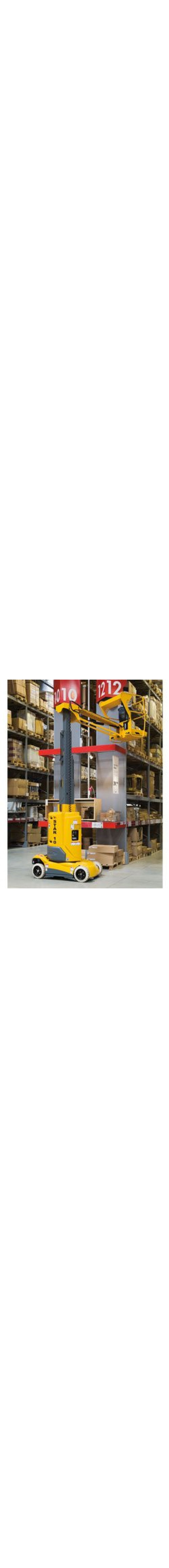

STAR 22J/26J Vertical Mast Man Lift
