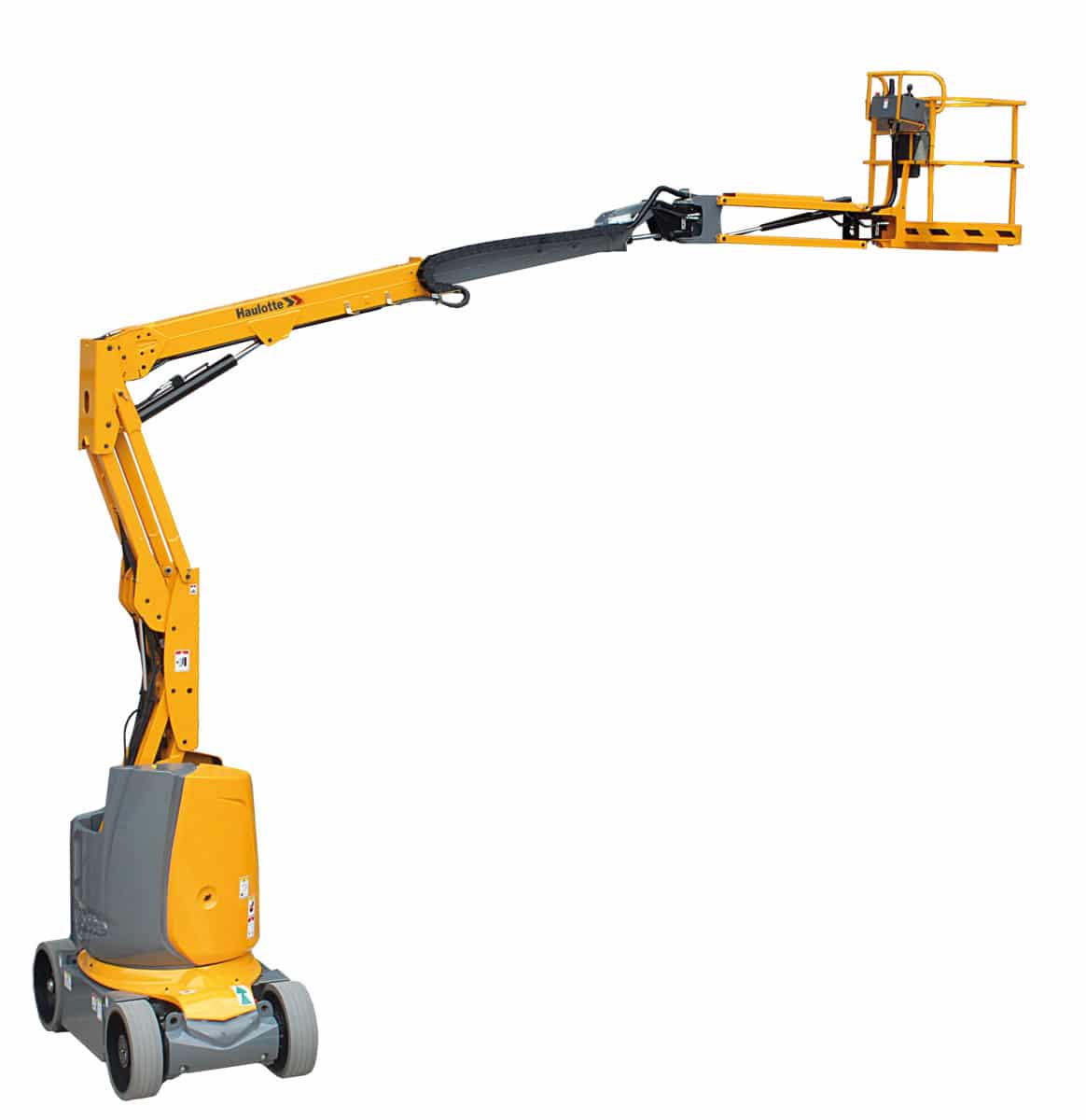

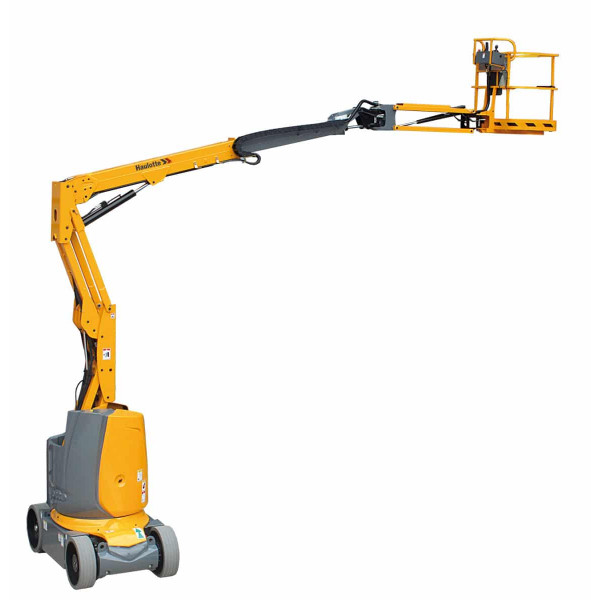

HA32 CJ+ Electric Articulating Boom Lift
HA32 CJ+ Electric Articulating Boom Lift. Working Height: 37 ft 9 in; Platform Height: 31 ft 9 in.
Articulating Boom Lifts Quote-based pricing
- Excellent maneuverability
- Simultaneous drive and rotation
- Tight turning radius
- Zero tailswing
- Compact stowed height passes through standard doorways
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Articulating Boom Lifts
Capacity
500 Ibs
Category
Boom Lifts
Key Feature
Excellent maneuverability
Product description
HA32 CJ+ Electric Articulating Boom Lift is specified with working height: 37 ft 9 in; platform height: 31 ft 9 in; lift capacity: 500 Ibs; platform size: 3 ft 9 in x 2 ft 7 in.
For HA32 CJ+ Electric Articulating Boom Lift, the catalog lists Working Height: 37 ft 9 in; Platform Height: 31 ft 9 in; Lift Capacity: 500 Ibs. Match these details to the configuration being quoted; options and model variants may differ.
Product features
- Excellent maneuverability
- Simultaneous drive and rotation
- Tight turning radius
- Zero tailswing
- Compact stowed height passes through standard doorways
- 3 ft 11 in width
- Optimized productivity
- Long working cycles
- Suitable for indoor and outdoor use
- Working height: 37 ft 9 in
- Platform height: 31 ft 9 in
- Horizontal outreach: 24 ft 1 in
- Up and over clearance: 15 ft 7 in
- Lift capacity: 500 Ibs
- Platform size: 3 ft 9 in x 2 ft 7 in
- Length: 18 ft 6 in
- Width: 3 ft 11 in
- Height - stowed: 6 ft 6 in
- Vertical jib rotation: 132.2° (+63.5/-68.7)
- Platform rotation: 180° (-90/+90)
- 2 wheel drive
- 48 V DC drive system
- Solid state battery charger
- Solid non-marking tires
- Towing hooks and lifting points
- Descent alarm
- Low voltage interrupt
- Battery charge indicator
- AC Power to the platform
- Automatic platform leveling
- Electronic horn
- Fully proportional controls
- Self-closing swing gate
- Auxiliary power in the platform for emergency down
- Centralized battery filling
- Flashing beacon
- Motion alarm (travel and elevate)
- Fluorescent tube caddy
- Orange safety cone holder
- 70 W platform working light
- Air line to platform
- Working light
- Power to the platform
- Circuit breaker
Selection considerations
- Confirm required working position and equipment reach.
- Confirm combined operator, tool and material load.
- Confirm floor or ground conditions, access width and overhead obstructions.
Access and lifting
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Articulating Boom Lifts |
|---|---|
| Working Height | 37 ft 9 in |
| Platform Height | 31 ft 9 in |
| Lift Capacity | 500 Ibs |
| Platform Size | 3 ft 9 in x 2 ft 7 in |
