Fiberglass Autoloader
Fiberglass Autoloader. Listed models: FAL-3610-50, FAL-3612-50, FAL-3614-50, FAL-3616-50; FAL-3610-50 Overall Width: 36".
Loading & Access Ramps Quote-based pricing
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Loading & Access Ramps
Capacity
Request capacity guidance
Category
Loading Dock Equipment
Key Feature
Fast quote turnaround
Product description
Fiberglass Autoloader is offered in the listed configurations FAL-3610-50, FAL-3612-50, FAL-3614-50, FAL-3616-50. Compare each row separately; dimensions and capacities belong to the model identified in that row.
The Autoloader Ramphas all the great features of the Heavy Duty Fiberglass Walkramps except with one outstanding difference.

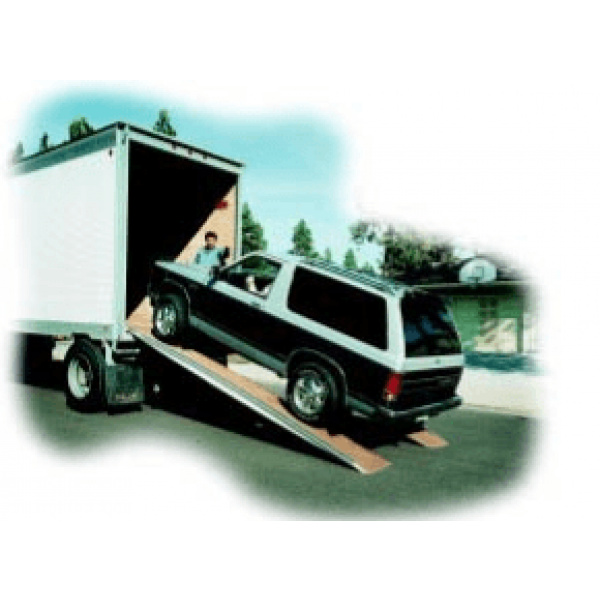

The Autoloader Ramp may be separated in half to provide two ramps which may be used to load automobiles and other vehicles.
Autoloader ramps have 5,000 pounds capacity.
For Fiberglass Autoloader, the catalog lists Listed models: FAL-3610-50, FAL-3612-50, FAL-3614-50, FAL-3616-50; FAL-3610-50 Overall Width: 36"; FAL-3610-50 Individual Width: 18". Match these details to the configuration being quoted; options and model variants may differ.
Before you specify this product
- Confirm dock height, door opening and vehicle dimensions.
- Confirm the load and traffic pattern at the loading position.
- Confirm mounting conditions and required installation clearances.
Selection considerations
- Confirm dock height, door opening and vehicle dimensions.
- Confirm the load and traffic pattern at the loading position.
- Confirm mounting conditions and required installation clearances.
Loading and unloading
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Loading & Access Ramps |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Fiberglass Autoloaders | ||||||
| Model | Overall Width | Individual Width | Ramp Length | Capacity (lbs) | Max Working Height | Net Weight (lbs) |
| FAL-3610-50 | 36" | 18" | 10' | 5,000 | 30" | 162/PR. |
| FAL-3612-50 | 36" | 18" | 12' | 5,000 | 35" | 186/PR. |
| FAL-3614-50 | 36" | 18" | 14' | 5,000 | 45" | 210/PR. |
| FAL-3616-50 | 36" | 18" | 16' | 5,000 | 50" | 264/PR |
