Economy Wire Reel Caddy
Economy Wire Reel Caddy. WIRE-D-E Capacity (lbs): 150; WIRE-D-E Overall Size (WxLxH): 17-3/4" x 19-1/2" x 43-1/8".
Hose & Cord Reels Quote-based pricing
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Hose & Cord Reels
Capacity
Request capacity guidance
Category
Industrial Supplies
Key Feature
Fast quote turnaround
Product description
Economy Wire Reel Caddy is offered in the listed configurations WIRE-D-E, WIRE-D, WIRE-D-WHK, WIRE-D-SHD-PN, WIRE-D-SHD-HR. Compare each row separately; dimensions and capacities belong to the model identified in that row.

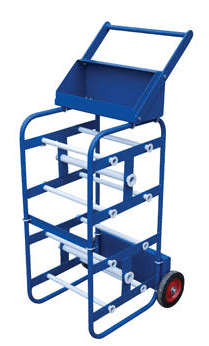

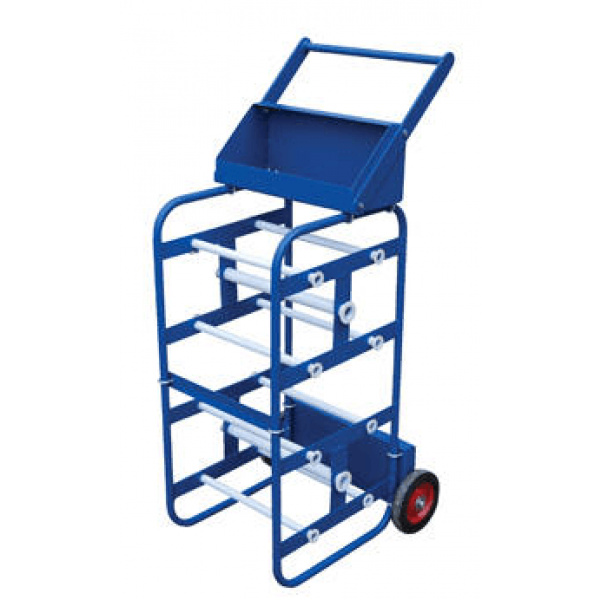

Move wire reels and dispense wire in vertical and horizontal position.
Caddy includes eleven (11) spool bars for handling various size reels.
Three (3) large 1-1/6" diameter axles handle 14" maximum reel diameter while the eight (8) smaller ¾" diameter axles handle 7" maximum reel diameter.
Storage tray on top for added versatility.
Portable with 6" diameter semi-pneumatic wheels and 43½" high handle.
Steel construction with painted finish.
For Economy Wire Reel Caddy, the catalog lists Listed models: WIRE-D-E, WIRE-D, WIRE-D-WHK, WIRE-D-SHD-PN and additional configurations; WIRE-D-E Description: Economy Wire Reel Caddy; WIRE-D-E Capacity (lbs): 150. Match these details to the configuration being quoted; options and model variants may differ.
Before you specify this product
- Confirm the intended task and equipment interfaces.
- Confirm load, dimensions and available operating space.
- Confirm installation requirements and the required configuration.
Selection considerations
- Confirm the intended task and equipment interfaces.
- Confirm load, dimensions and available operating space.
- Confirm installation requirements and the required configuration.
Industrial operations
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Hose & Cord Reels |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Wire Reel Caddy | |||||
| Model | Description | Capacity (lbs) | Overall Size (WxLxH) | Wt. (lbs) | |
| WIRE-D-E | Economy Wire Reel Caddy | 150 | 17-3/4" x 19-1/2" x 43-1/8" | 41 | |
| WIRE-D | Stand Alone Unit | 300 | 24" x 16-1/4" x 44-3/8" | 56 | |
| WIRE-D-WHK | Portable Unit (Casters & Handle) | 300 | 29" x 21-7/8" x 47-5/16" | 90 | |
| Options | |||||
| WIRE-D-SHD-PN | Hand Truck (Pneumatic Wheels) | - | 22"x19"x52" | 39 | |
| WIRE-D-SHD-HR | Hand Truck (Hard Rubber Wheels) | - | 22"x19"x52" | 42 | |
