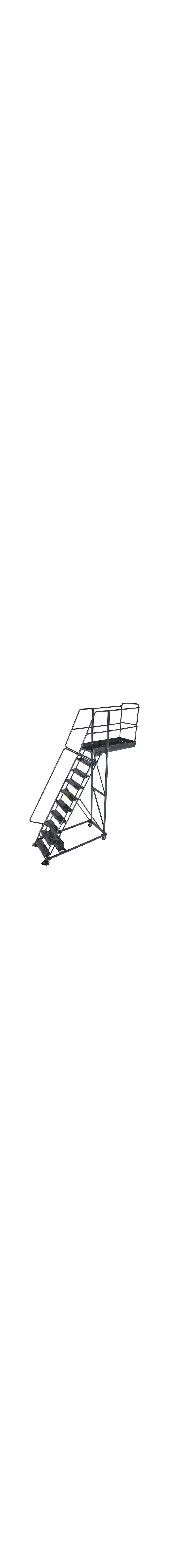

Cantilever Rolling Ladder CL-10 10 Step
Cantilever Rolling Ladder CL-10 10 Step. 57 degree slope is standard; 24" wide steps.
Quote Only
Industrial Access Equipment
Cantilever Rolling Ladder
Cantilever rolling ladder family with 57-degree slope, 24-inch steps and a listed 300-pound rating. Select platform height and overhang together.
Rolling Ladders Quote-based pricing
- 57 degree slope is standard
- 24" wide steps
- Individually locking casters
- Overhangs hard to reach areas
- Several overhang depths to choose from (see catalog)
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Rolling Ladders
Capacity
Request capacity guidance
Category
Industrial Ladders
Key Feature
57 degree slope is standard
Product description
This family provides an overhanging platform for access beyond a supporting base. The source lists locking casters, base counterbalance, 1-inch square-tube construction and 30-inch handrails. Several overhang depths are referenced, so one model's geometry should not be applied across the range.
Specify the obstacle, required standing elevation and reach beyond the base. Confirm the selected model's under-clearance, overhang, base footprint and counterbalance arrangement. If the intended configuration is CL-9, use its separate model dimensions rather than treating this family page as a complete drawing.
Product features
- 57 degree slope is standard
- 24" wide steps
- Individually locking casters
- Overhangs hard to reach areas
- Several overhang depths to choose from (see catalog)
- Counterbalance weight at base
- 300 lbs load rating
- 1" square tube construction
- 30" handrails
- Gray industrial enamel finish
Selection considerations
- Confirm required elevation, obstacle clearance and overhang.
- Confirm model-specific base and counterbalance dimensions.
- Confirm supported load and caster-locking arrangement.
Access and lifting
Specifications
Compare the listed dimensions, capacity and configuration.
| Category | Rolling Ladders |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Item # | Platform Height | # Steps | Vertical | Platform | Base | Overhang | Quote | ||
| Under-Clearance | W x D | W x D | |||||||
| CL-6 | 60" | 6 steps | 57" | 24" x 28" | 32" x 53" | 14" | Call | ||
| CL-7 | 70" | 7 steps | 67" | 24" x 28" | 32" x 59" | 14" | Call | ||
| CL-8 | 80" | 8 steps | 77" | 24" x 28" | 32" x 65" | 14" | Call | ||
| CL-9 | 90" | 9 steps | 87" | 24" x 28" | 32" x 72" | 14" | Call | ||
| CL-10 | 100" | 10 steps | 97" | 24" x 28" | 32" x 78" | 14" | Call | ||
| CL-11 | 110" | 11 steps | 107" | 24" x 28" | 32" x 84" | 14" | Call | ||
| CL-12 | 120" | 12 steps | 117" | 24" x 28" | 32" x 91" | 14" | Call | ||
| CL-13 | 130" | 13 steps | 127" | 24" x 28" | 40" x 98" | 14" | Call | ||
| CL-14 | 140" | 14 steps | 137" | 24" x 28" | 40" x 104" | 14" | Call | ||
| CL-15 | 150" | 15 steps | 147" | 24" x 28" | 40" x 110" | 14" | Confirmed with quote | ||
| Item # | Option | Platform W x D | 8-12 Steps | 13+ steps | |||||
| 28OH | 28" Overhang | 24" x 42" | Confirmed with quote | Confirmed with quote | |||||
| 35OH | 35" Overhang | 24" x 49" | Confirmed with quote | Confirmed with quote | |||||
| 42OH | 42" Overhang | 24" x 56" | Confirmed with quote | Confirmed with quote | |||||
| SC | Optional Removable Safety Chain; Top exit for easy access | Confirmed with quote | |||||||
Need help choosing the right equipment?
Tell us your requirements and we’ll recommend the best-fit configuration and provide pricing.
Related Products
More options from the same category and similar equipment.

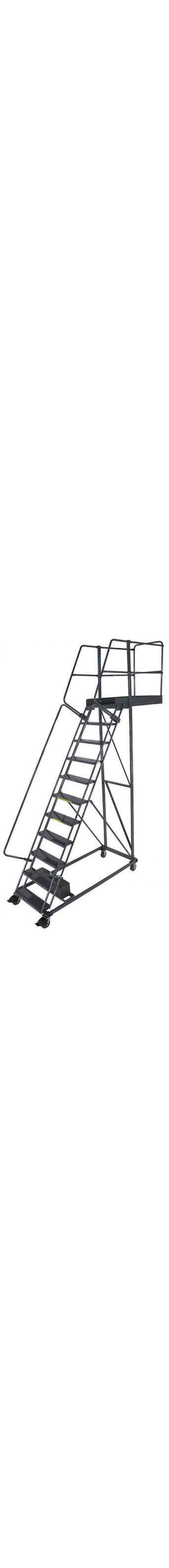

Cantilever Rolling Ladder CL-11 11 Step
Cantilever Rolling Ladder CL-11 11 Step. 57 degree slope is standard; 24" wide steps.

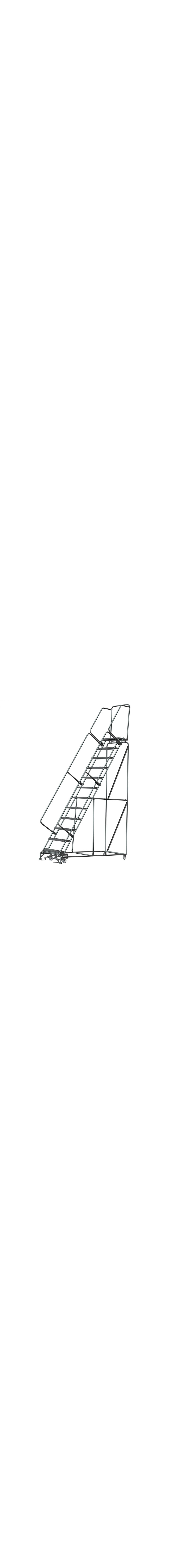

Cantilever Rolling Ladder CL-12 12 Step
Cantilever Rolling Ladder CL-12 12 Step. 57 degree slope is standard; 24" wide steps.

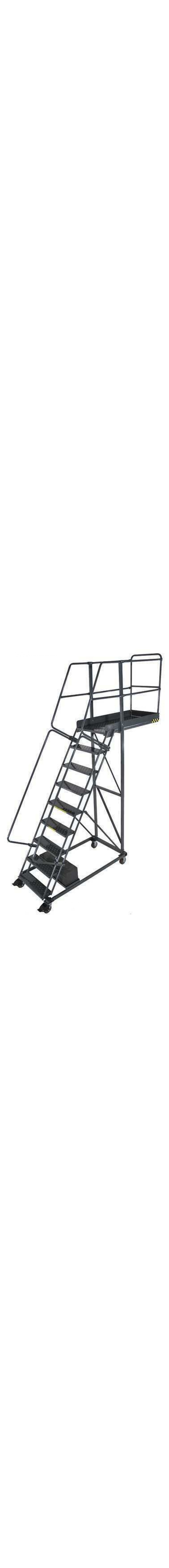

Cantilever Rolling Ladder CL-13 13 Step
Cantilever Rolling Ladder CL-13 13 Step. 57 degree slope is standard; 24" wide steps.
Explore More Categories
Browse related equipment types and compare model specifications.
Explore More
Browse related equipment and request a quote when you’re ready.
Ready for pricing?
Send your requirements so we can review the configuration, availability and quoted terms.
FAQ
Is this family page a complete specification for CL-9?
No. CL-9 has its own dimensions, including a 90-inch platform height and 14-inch overhang. Use the exact model drawing and rating for the configuration being quoted.
