Adjustable Pallet Stands
Adjustable Pallet Stands. Listed models: PS-4045, PS-4045/CA, PS-4045/CA-CK, PS-4045-CK; PS-4045 Platform (WxL): 40"x42-1/4".
Lift Tables & Work Positioners Quote-based pricing
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Lift Tables & Work Positioners
Capacity
Request capacity guidance
Category
Material Handling Equipment
Key Feature
Fast quote turnaround
Product description
Adjustable Pallet Stands is offered in the listed configurations PS-4045, PS-4045/CA, PS-4045/CA-CK, PS-4045-CK. Compare each row separately; dimensions and capacities belong to the model identified in that row.

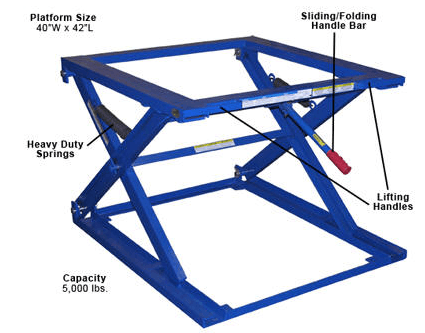

The Adjustable Height Pallet Stand is designed to manually adjust to three different ergonomic working heights.
Unit includes a three position manual adjusting bar with spring assist to help raise and lower the deck.
The Pallet Stand must be empty when adjusting the height.
Unit is welded steel construction and painted blue.
The optional bolt on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360°.
For Adjustable Pallet Stands, the catalog lists Listed models: PS-4045, PS-4045/CA, PS-4045/CA-CK, PS-4045-CK; PS-4045 Platform (WxL): 40"x42-1/4"; PS-4045 Capacity (lbs): 5,000. Match these details to the configuration being quoted; options and model variants may differ.
Before you specify this product
- Confirm load weight, center of gravity and load dimensions.
- Confirm required lifting range, travel route and equipment clearances.
- Confirm floor conditions, load support and equipment operating limits.
Selection considerations
- Confirm load weight, center of gravity and load dimensions.
- Confirm required lifting range, travel route and equipment clearances.
- Confirm floor conditions, load support and equipment operating limits.
Material handling
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Lift Tables & Work Positioners |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Pallet Stand | ||||||||
| Model | Platform (WxL) | Capacity (lbs) | Lowered Height | First Setting | Second Setting | Third Setting | Wt. (lbs) | |
| PS-4045 | 40"x42-1/4" | 5,000 | 10" | 20-1/4" | 30-1/2" | 35-1/4" | 253 | |
| PS-4045/CA | 40"x42-1/4" | 4,000 | 12-1/4"" | 22-1/4" | 32-3/4" | 37-1/4" | 312 | |
| PS-4045/CA-CK | 40"x42-1/4" | 1,500 | 18 7/8" | 28-7/8" | 39 1/8" | 44-7/8" | 333 | |
| PS-4045-CK | 40"x42-1/4" | 1,500 | 16-1/2" | 27- 3/4" | 38" | 42-5/8" | 271 | |
| PS-RF-CK | Casters to retro fit onto existing pallet stands | 57 | ||||||
